Round Base – NC : Multipurpose all-weather powerful pot magnet
$1.13
Price With Different Size
- NC10
- NC12 [+$0.43]
- NC16 [+$1.14]
- NC20 [+$2.41]
- NC25 [+$4.11]
- NC32 [+$5.96]
- NC36 [+$6.67]
- NC42 [+$11.20]
- NC48 [+$18.57]
- NC60 [+$39.98]
- NC75 [+$87.32]
Description
RBM-NC Series
Round Base holding pot magnet with bolt
-
An invaluable fixturing tool for fabricators and engineers who may be looking for an attractive mechanism to clamp any article to a steel base.
-
Low-profile magnets with a bolt. Made of normal grade Neodymium magnets for operating temperatures ~ max 80 Deg C.
RBM-NC Series Data Sheet : Round-Base Series

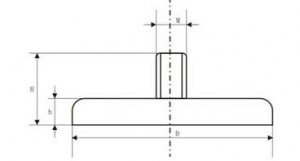

All Dimensions are in ‘mm’
| Type | D | M | H |
h |
Weight (gms) |
Adhesive Force (kg) |
| RBM-NC10 | 10 | 3 | 12 | 5 | 3.5 | 2.2 |
| RBM-NC12 | 12 | 3 | 13 | 5 | 5 | 3.2 |
| RBM-NC16 | 16 | 4 | 13 | 5 | 7.5 | 5.5 |
| RBM-NC20 | 20 | 4 | 15 | 7 | 16 | 9 |
| RBM-NC25 | 25 | 5 | 17 | 8 | 30 | 22 |
| RBM-NC32 | 32 | 6 | 18 | 8 | 45 | 34 |
| RBM-NC36 | 36 | 6 | 18 | 8 | 57 | 41 |
| RBM-NC42 | 42 | 6 | 20 | 9 | 84 | 68 |
| RBM-NC48 | 48 | 8 | 24 | 11.5 | 130 | 81 |
| RBM-NC60 | 60 | 8 | 30 | 15 | 254 | 113 |
| RBM-NC75 | 75 | 10 | 34 | 15 | 550 | 164 |
